Downdraft extractor system MIELE
ASK STORE 77777007 FOR A QUOTATION

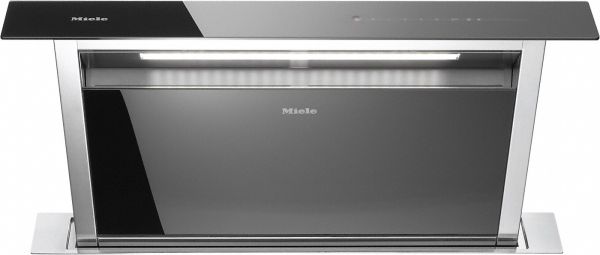

DA 6890 Levantar
Downdraft extractor system With dimmable LED lighting and touch controls for convenient operation.
- Practical - 916mm wide cooker hood with motorised canopy
- Powerful - 710m3/h on the booster setting
- Practical - 15-minute automatic fan run-on
- Suitable for every home - for extraction or recirculation
- Ideal for combination with a panorama hob
Construction type Downdraft extractor systemYes Design ColourStainless steel Edge extractionYes Operating modes Type of air guideConvertible External operation possibleYes Active charcoal filter (order separately)DKF22-1 User convenience Electronic controlsYes Touch-on-glass controlsYes Power levels (number without Booster level)3 Booster levelYes Run-on time 15 min.Yes Grease filter saturation indicatorYes Hood in MotionYes Efficiency and sustainability Annual energy consumption in kWh/year109,9 Filter system Number of dishwasher safe metal grease filters2 Lighting LEDYes Light intensity in Lx300 Colour temperature in K3.570 Dimmer functionYes Fan Dual-action fanYes AC motorYes Air throughput with max. duct diameter in extraction mode (not for external version) Air throughput in Level 1 (m³/h)220 Air throughput in Level 2 (m³/h)380 Air throughput in Level 3 (m³/h)450 Air throughput in Booster level (m³/h)710 Sound power in Level 1 (dB(A) re 1 pW)47 Sound power in Level 2 (dB(A) re 1 pW)57 Sound power in Level 3 (dB(A) re 1 pW)60 Sound power in Booster level (dB(A) re 1 pW)69 Sound pressure in Level 1 (dB(A) re 20 µPa)34 Sound pressure in Level 2 (dB(A) re 20 µPa)44 Sound pressure in Level 3 (dB(A) re 20 µPa)47 Sound pressure in Booster level (dB(A) re 20 µPa)56 Air throughput in recirculation mode Air throughput in Level 1 (m³/h)230 Air throughput in Level 2 (m³/h)375 Air throughput in Level 3 (m³/h)435 Air throughput in Booster level (m³/h)640 Sound power in Level 1 (dB(A) re 1 pW)53 Sound power in Level 2 (dB(A) re 1 pW)60 Sound power in Level 3 (dB(A) re 1 pW)64 Sound power in Booster level (dB(A) re 1 pW)74 Sound pressure in Level 1 (dB(A) re 20 µPa)40 Sound pressure in Level 2 (dB(A) re 20 µPa)47 Sound pressure in Level 3 (dB(A) re 20 µPa)51 Sound power in Booster level (dB(A) re 1 pW)61 Safety Safety switch-offYes Single pane tempered glassYes Technical data Overall height for extraction mode and external mode cooker hoods in mm1.051 - 1.051 Overall height for recirculation mode cooker hoods in mm1.051 - 1.051 Canopy width in mm916 Canopy height in mm646 Canopy depth in mm361 Net weight in kg37,0 Length of supply lead in m1,5 Standard plug fittedYes Total rated load in kW0,28 Voltage in V230 Fuse rating in A10 Number of phases1 Installation notes Extraction ducting connection top/rear/side/belowYes Diameter of extraction ducting connection in mm150 Optimal combination with hobKM 6699-1, KM 7684 FL
Active AirClean filterA completely odour-free kitchen
To remove odours with a Miele recirculation cooker hood, you can use an active charcoal filter. This disposable filter has to be replaced on a regular basis.
Edge extractionDecorative panels instead of metal grease filters
In cooker hoods with edge extraction the commercial-looking metal grease filters are hidden behind a decorative cover. Cooking vapours are extracted around the perimeter and for hoods with multi-zone extraction from the centre area of the hoods as well.
Handcrafted in GermanyEach Miele cooker hood is unique.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.
Safety switch-offAlways on the safe side
The cooker hood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.
