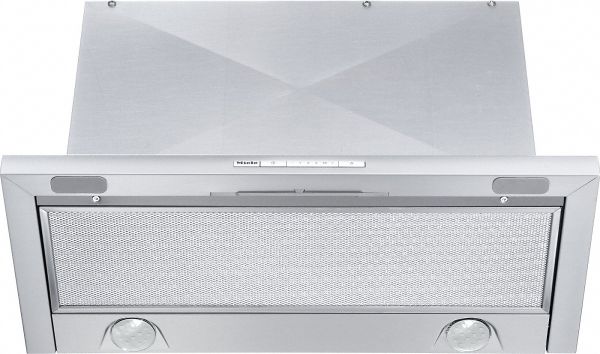

Slimline cooker hood MIELE
CALL STORE 77777007 FOR A QUOTATION
- Elegant design - slim 595mm extractor canopy
- Powerful - 430m3/h on the booster setting
- Efficient filtration- 10-ply stainless-steel grease filter
- Safe and easy to clean - Miele CleanCover
- Suitable for every home - for extraction or recirculation
Construction type Slimline cooker hoodYes Design ColourStainless steel Operating modes Type of air guideConvertible User convenience Mechanical controlsYes Slide switchYes Power levels (number without Booster level)3 Booster levelYes Cleaning convenience CleanCoverYes Efficiency and sustainability Annual energy consumption in kWh/year61,4 Filter system Number of dishwasher safe stainless-steel grease filters (10-ply)1 Lighting LEDYes Light intensity in Lx320 Colour temperature in K3.000 Fan Dual-action fanYes AC motorYes Air throughput with max. duct diameter in extraction mode (not for external version) Air throughput in Level 1 (m³/h)150 Air throughput in Level 2 (m³/h)240 Air throughput in Level 3 (m³/h)320 Air throughput in Booster level (m³/h)430 Sound power in Level 1 (dB(A) re 1 pW)44 Sound power in Level 2 (dB(A) re 1 pW)47 Sound power in Level 3 (dB(A) re 1 pW)51 Sound power in Booster level (dB(A) re 1 pW)58 Sound pressure in Level 1 (dB(A) re 20 µPa)32 Sound pressure in Level 2 (dB(A) re 20 µPa)35 Sound pressure in Level 3 (dB(A) re 20 µPa)38 Sound pressure in Booster level (dB(A) re 20 µPa)45 Air throughput in recirculation mode Air throughput in Level 1 (m³/h)80 Air throughput in Level 2 (m³/h)150 Air throughput in Level 3 (m³/h)200 Air throughput in Booster level (m³/h)300 Sound power in Level 1 (dB(A) re 1 pW)52 Sound power in Level 2 (dB(A) re 1 pW)58 Sound power in Level 3 (dB(A) re 1 pW)61 Sound power in Booster level (dB(A) re 1 pW)67 Sound pressure in Level 1 (dB(A) re 20 µPa)40 Sound pressure in Level 2 (dB(A) re 20 µPa)45 Sound pressure in Level 3 (dB(A) re 20 µPa)49 Sound power in Booster level (dB(A) re 1 pW)55 Technical data Canopy width in mm595 Canopy height in mm34 Canopy depth in mm275 Minimum height above electric hobs in mm450 Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650 Net weight in kg12,0 Length of supply lead in m1,5 Standard plug fittedYes Total rated load in kW0,12 Voltage in V230 Fuse rating in A10 Number of phases1 Installation notes Extraction ducting connection at topYes Diameter of extraction ducting connection in mm150 Standard accessories Non-return flapYes Adapter to reduce ducting diameter from 150 mm to 125 mm ØYes
Design flexibilityTimeless purism
Miele offers cooker hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele cooker hoods have characteristic accents without being intrusive. Clean lines, well thought-out functions and timeless design.
Miele CleanCoverConvenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
High-quality and powerful motorsParticularly powerful
Miele cooker hoods are equipped with high-quality radial fans that provide suction on two sides. These high-performance units guarantee powerful air throughput at all times as well as optimised extraction. Despite their high performance, the fans operate at a comfortably low noise level.
Active AirClean filterA completely odour-free kitchen
Miele recirculation mode cooker hoods always require an Active AirClean filter in addition to the grease filter. This Miele filter removes odours efficiently and long-term.
Stainless steel grease filters (10-layer)Aesthetically pleasing and highly functional
Miele cooker hoods are equipped with a 10-ply stainless-steel grease filter. The top layers and filter frame are made of high-quality stainless steel. "When you conveniently clean the grease filters in the dishwasher, no visible discolouring will occur," and the Miele grease filters keep their high-quality appearance for a long time.
Perfect processingVisible quality
Miele cooker hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele cooker hoods. Enjoy perfect workmanship!
Handcrafted in GermanyEach Miele cooker hood is unique.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.
