Villeroy & Boch - ViConnect - 92247900

€199.00
In stock
SKU
V-9224/79/00

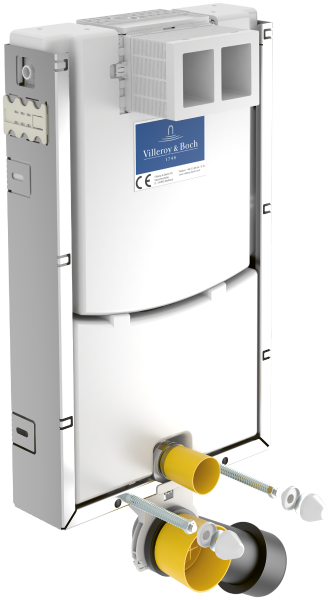

Concealed cistern with metal frame for Brick Wall construction

WIDTH 447 mm
HEIGHT 749 mm
DEPTH 125 mm
WEIGHT 7,1 kg

VICONNECT TOILET SYSTEM FOR BRICK-WALL CONSTRUCTION

  • Installation on or in front of a solid brick wall, Easy connection to flush plate via flexible cables with bayonet joint, flexible hose for filling valve, can be tightened by hand, protection box for access opening can be cut to size, Toilet connecting bend 90° DN 90 (Ø 90) / with reducing sleeve DN 90 (Ø 90) / DN 110 (Ø 110) with protection cap, Complete toilet connection set DN 90 (Ø 90) / 180 mm
  • M12 WC fastening materials, fastening materials, without flush plate
  • Individual packaging materials
  • For combination with: for wall-mounted WC
  • Comprising a U-shaped galvanized support frame with 6 fastening lugs
  • Front-operated, button function transmitted to drain fitting via flexible cables, connection to flush plate via bayonet joint
  • Concealed cistern with insulation against condensation with dual flush 3/6 l, adjustable to 3/4,5 l, maximal flush quantity 7.5 l, filling valve Noise Class I, 2-part angle valve connection set R1/2, mounting clip for drain bend, 4 adjustment settings, certification marks for concealed cistern: Noise Class I, adjustable flush flow control for adaptation to rimless toilet bowls
  • For brick-wall construction
